JCA SSL connection

General Information

Use of the HSM JCAprovider to establish a TLS tunnel with mutual authentication (mTLS).

The code is an example from the HSM Java API documentation.

This example makes a connection to a SEFAZ-SP (São Paulo State Treasury Department) endpoint accessible on October 3, 2025, but can be used with any host compatible with the standard.

Environment settings:

OS: Windows 11 Pro
Command prompt
Maven 3.9.1
Chrome Browser: Version 134.0.6998.166 (Official version) 64-bit
Java 21 (installed, in path and JAVA_HOME)
HSM firmware: 5.9.0.0
HSM client: 4.19.0
HSM Java Client: 4.19.0 (or higher)

Requirements

Connectivity with the HSM (TCP port 4433).
HSM service started.
Credentials of the HSM partition where the private key will be created or used.
Private key, certificate and user chain.
Certificate chain of the remote host.

Artifacts

Danger

Strictly follow the naming rules or the certificates and chains will not be found, making it impossible to establish the TLS tunnel. See more details and options in the JCA documentation.

Example:

Private key: the name is free. E.g.: test.
Certificate: the name of the private key with suffix _cert. E.g.: test_cert.
Certificate chain: the name of the private key with a _chain suffix. E.g.: test_chain.

Importing a .pfx file

If you do not have a private key and certificate installed in the HSM, perform the following steps.

Install the HSM client, available in downloads.
Open the dynamocon program.
Configure the HSM information.
Import the PFX file containing the private key and certificate that will be used for mutual authentication.

At this point the HSM will have a private key and a user certificate. For example: private key named test and certificate named test_cert.

User Chain Export

If you don't have the certificate chain installed in the HSM with the correct nomenclature, follow these steps.

Open the certificate manager. You can do this by running the following command.
```
certmgr.msc
```
Double-click on the imported certificate.

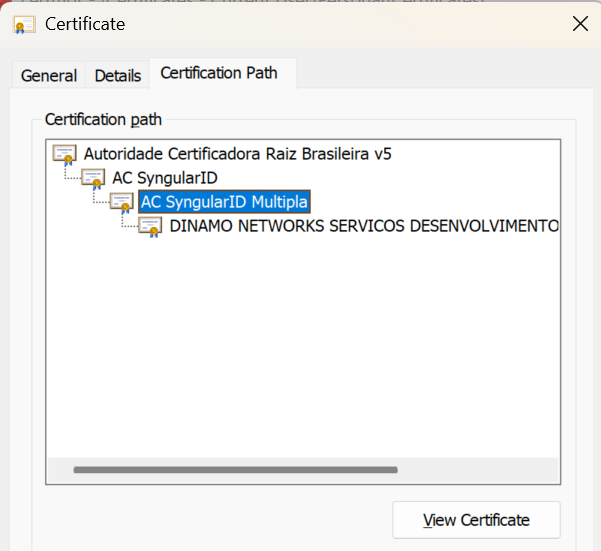

Select theCertification Path tab, then double-click on the certification authority just above the imported certificate.

Select pkcs#7

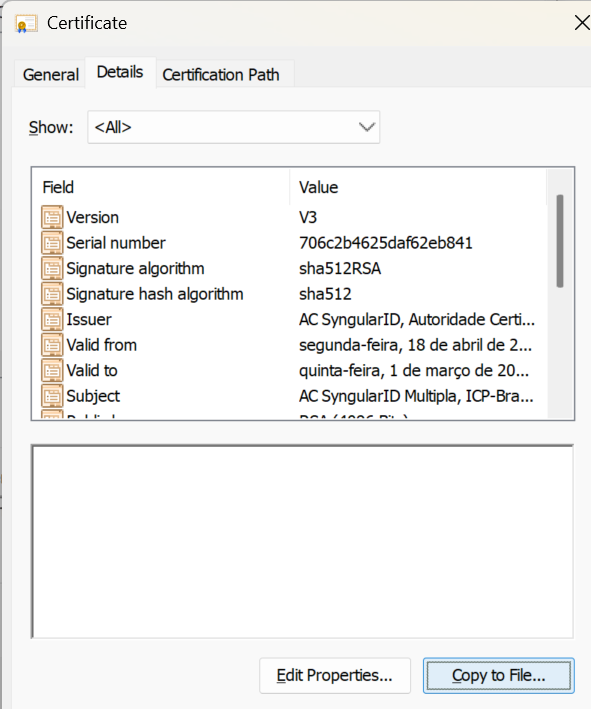

Select the Details tab and then click Copy to file.

Copy to file
Select Do not export private key.

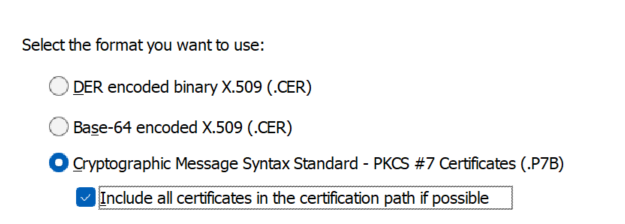

Select Certificate PKCS#7 (.P7B).

Select pkcs#7
Save the .p7b file.

Importing the User Chain

No prompt de comando executar o seguinte comando hsmcon <IP> <usuário>. E em seguida inserir a senha.

E.g:
```
hsmcon 127.0.0.1 master
```

Import the certificate chain. Select Import, Others and then PKCS#7. Add the name of the .p7b file and then the name of the chain, following the nomenclature.

Importing certificate chains into HSM

Dinamo - Remote Management Console v. 4.19.0.0 2018 (c) Dinamo Networks

HSM 127.0.0.1 e - Engine 5.9.0.0 (DXP) - TCA0000000  - ID master

Keys/Objects - Import - Others - PKCS#7

File (local): D:\tmp\examples\jcassl\test.p7b
File name (HSM): teste_chain

File loaded successfully.

Press ENTER key to continue...

Check the objects. In the main menu, choose the option to list List objects.

Object	Type	Nomenclature	Example
Private key	e.g. rsa2048	free	`test`
Certificate	x.509	key name plus suffix `_cert`	`test_cert`
Chain of certificates	pkcs#7	key name plus `_chain` suffix	`test_chain`

Details of the nomenclature can be seen above or in the JCA documentation.

Listing objects in HSM

Dinamo - Remote Management Console v. 4.19.0.0 2018 (c) Dinamo Networks

HSM 127.0.0.1 e - Engine 5.9.0.0 (DXP) - TCA0000000  - ID master

Keys/Objects - List


Name                                      Type                 T E Label
================================================================================
teste                                     rsa2048              n y teste_cert
teste_cert                                x.509                n y teste_cert
teste_chain                               pkcs#7               n y

Total of objects: 3

Press ENTER key to continue...

Remote Host Chain Export

To perform mutual authentication, we need to verify the remote host, and for this we need its certificate chain.

A form of recovery, for didactic purposes, is shown below.

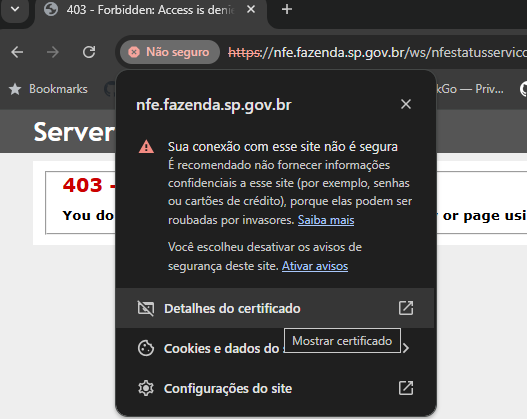

Open your browser and go to the destination page (you don't need to log in), click on Not secure and then on certificate.

Select remote certificate

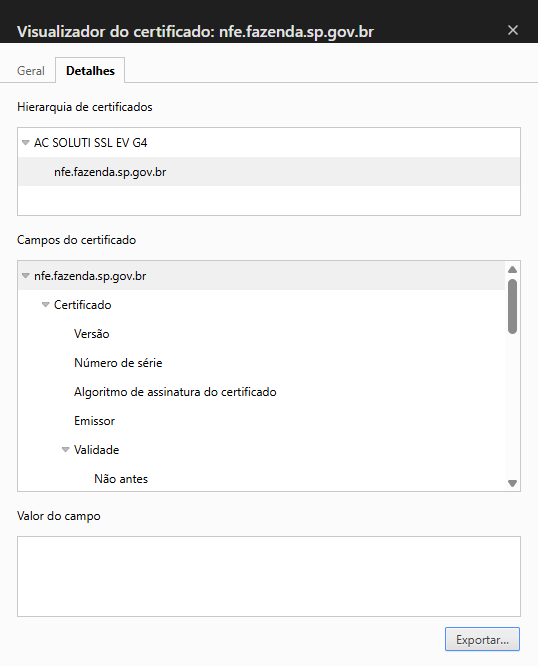

In the window that opens, click on Details, then export and then save to a file.

Export remote certificate
Open the certificate and then perform the steps above, but now to extract the certificate chain from the remote host.

Project creation

Create a standard project.

mvn archetype:generate -DgroupId=doxy.examples -DartifactId=jcassl -DarchetypeArtifactId=maven-archetype-quickstart -DinteractiveMode=false

Enter the project folder.
```
cd jcassl
```
Copy the example file from the HSM Java API documentation to the src\main\java\doxy\examples folder.

Remove the files:
- src\main\java\doxy\examples\App.java
- src\test\java\doxy\examples\AppTest.java

Change the POM to the following content:

<project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                         https://maven.apache.org/xsd/maven-4.0.0.xsd">

<modelVersion>4.0.0</modelVersion>
<groupId>doxy.examples</groupId>
<artifactId>jcassl</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>jar</packaging>

<name>JCASSL</name>

<properties>
    <maven.compiler.source>21</maven.compiler.source>
    <maven.compiler.target>21</maven.compiler.target>
</properties>

<dependencies>
    <!-- Dinamo HSM SDK (external, not bundled) -->
    <dependency>
      <groupId>io.dinamonetworks.sdk</groupId>
      <artifactId>dinamo-hsm</artifactId>
      <version>4.19.0</version>
    </dependency>
</dependencies>

<build>
    <plugins>
        <!-- Compiler plugin -->
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.11.0</version>
            <configuration>
                <source>${maven.compiler.source}</source>
                <target>${maven.compiler.target}</target>
            </configuration>
        </plugin>

        <!-- Jar plugin to define main class -->
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-jar-plugin</artifactId>
            <version>3.3.0</version>
            <configuration>
                <archive>
                    <manifest>
                        <mainClass>doxy.examples.JCASSL</mainClass>
                    </manifest>
                </archive>
            </configuration>
        </plugin>

        <!-- Exec plugin for easy run -->
        <plugin>
            <groupId>org.codehaus.mojo</groupId>
            <artifactId>exec-maven-plugin</artifactId>
            <version>3.1.0</version>
        </plugin>
    </plugins>
</build>

</project>

Compile.
```
mvn clean package
```

Connection Execution and Testing

To define which HSM will be used by the JCA, we will use system properties but other forms are also acceptable.

Execute the command as follows:

mvn exec:java -Dexec.mainClass="doxy.examples.JCASSL" -Ddinamo.hsm.jca.ip=`<IP DO HSM>` -Ddinamo.hsm.jca.user=`<USUÁRIO DO HSM>` -Ddinamo.hsm.jca.pwd=`<SENHA DO USUÁRIO>` -Dexec.args="`<URL DE DESTINO>` `<ARQUIVO DA CADEIA DO HOST REMOTO> ` `<ID DA CHAVE PRIVADA>`"

E.g:

mvn exec:java -Dexec.mainClass="doxy.examples.JCASSL" -Ddinamo.hsm.jca.ip=127.0.0.1 -Ddinamo.hsm.jca.user=master -Ddinamo.hsm.jca.pwd=12345678 -Dexec.args="https://nfe.fazenda.sp.gov.br/ws/nfestatusservico4.asmx D:\tmp\examples\jcassl\sefaz-sp.p7b teste"

In this example it should show the subjects of the chain certificates and the html code of the remote host.

E.g:

mvn exec:java -Dexec.mainClass="doxy.examples.JCASSL" -Ddinamo.hsm.jca.ip=127.0.0.1 -Ddinamo.hsm.jca.user=master -Ddinamo.hsm.jca.pwd=12345678 -Dexec.args="https://nfe.fazenda.sp.gov.br/ws/nfestatusservico4.asmx D:\tmp\examples\jcassl\sefaz-sp.p7b teste"

[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------< doxy.examples:jcassl >------------------------
[INFO] Building JCASSL 1.0-SNAPSHOT
[INFO]   from pom.xml
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- exec:3.1.0:java (default-cli) @ jcassl ---
Host chain(received from host):

[0] Subject: OID.1.3.6.1.4.1.311.60.2.1.3=BR, OID.2.5.4.15=Government Entity, CN=nfe.fazenda.sp.gov.br, SERIALNUMBER=46377222000129, L=Abadia de Goias, ST=GO, O=SECRETARIA DA FAZENDA E PLANEJAMENTO, C=BR
Issuer: CN=AC SOLUTI SSL EV G4, OU=Autoridade Certificadora Raiz Brasileira v10, O=ICP-Brasil, C=BR
[1] Subject: CN=AC SOLUTI SSL EV G4, OU=Autoridade Certificadora Raiz Brasileira v10, O=ICP-Brasil, C=BR
Issuer: CN=Autoridade Certificadora Raiz Brasileira v10, OU=Instituto Nacional de Tecnologia da Informacao - ITI, O=ICP-Brasil, C=BR

URL content:


<html>

<head><link rel="alternate" type="text/xml" href="/ws/nfestatusservico4.asmx?disco" />

<style type="text/css">

...

</style>

<title>
    NFeStatusServico4 Web Service
</title></head>

  <body>

<div id="content">

  <p class="heading1">NFeStatusServico4</p><br>

  <span>
      <p class="intro">Servi├ºo destinado ├á consulta do status do servi├ºo prestado pelo Portal da Secretaria de Fazenda Estadual.</p>
  </span>

  <span>

      <p class="intro">The following operations are supported.  For a formal definition, please review the <a href="nfestatusservico4.asmx?WSDL">Service Description</a>. </p>


          <ul>

          <li>
            <a href="nfestatusservico4.asmx?op=nfeStatusServicoNF">nfeStatusServicoNF</a>

            <span>
              <br>Consulta Status do Servi├ºo
            </span>
          </li>
          <p>

          </ul>

  </span>




<span>

</span>






  </body>
</html>
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  2.266 s
[INFO] Finished at: 2025-10-03T20:31:50-03:00
[INFO] ------------------------------------------------------------------------
